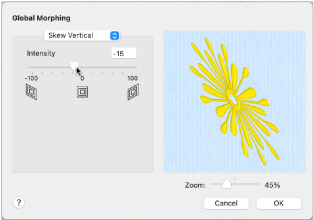

Skew Vertical

Slant the stitches vertically up or down.




Intensity

Adjust the Intensity from -100 to +100. The higher the number, the greater the slant. Negative values slant the stitches down and positive values slant the stitches up.

Zoom Controls

Use the zoom control to change the view of the embroidery in the preview.

Use Skew Vertical to Morph an Embroidery

  1. In the Modify


     window of the Control Panel


     click Global Morphing Global_Morph_icon_cp00792.jpg.
    Alternatively, choose Design > Global Morphing.

  2. Select Skew Vertical from the pop-up menu of effect types at the top of the dialog.

  3. Drag the Intensity slider bar, or click in the Intensity box and enter a number from -100 to 100. The Before and After boxes show the original stitches and a preview of the effect.

  4. Click OK. The visible stitches on the work area are skewed.
