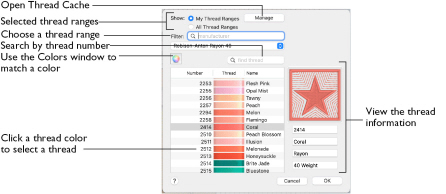

Color Selection

The Color Selection dialog appears when you click a thread color in the Color Select area. You may choose any thread shade from the available thread manufacturers' palettes (for instance, Robison-Anton Rayon 40 or Sulky Rayon 40) or a thread you have added to My Threads.


When you select a new thread color, the Color Select area shows the color change, and the work area shows the block of stitches in the new color.

Choose a Thread Range

To Select a Thread Color

Change a Color
  1. Click a color you wish to change in the color worksheet, then click the Add Color


     button. The Color Selection dialog appears.

  2. Note: Alternatively, double-click the color.

  3. If required, change the thread range. Select the desired thread range from all thread ranges or only MyThreadRanges. The available shades for the thread range are shown in the list.

  4. Note: The Abbreviation shows the reference used for the thread range when threads from that range are added to MyThreads.

  5. Click a color in the list to select a thread shade visually. Use the scroll bar to browse through the list of threads.

  6. If you know the shade number, click in the Find Thread box then enter the required shade number.

  7. Alternatively, click the Colors


     button, and in the Colors window choose a pencil color to select the nearest matching thread color. This is also a quick way to jump to threads of that color (for example, click the yellow pencil to jump to yellow thread shades).

  8. Click Manage to manage your thread ranges in mySewnet™ Thread Cache.

  9. Click OK to confirm the color selection.

Thread Colors in mySewnet™ Cross Stitcher

The thread type and number of colors in a thread does not affect the display on the mySewnet™ Cross Stitcher screen. All thread types are displayed the same as rayon threads. The stitches in variegated threads only use the first color in the thread.

Note: Thread color effects such as puffy foam and special needles such as twin or wing needles are not available in mySewnet™ Cross Stitcher. To use such color effects, export your design and open it in mySewnet™ Embroidery.
